جهاز المراقبة

جيب دونجل

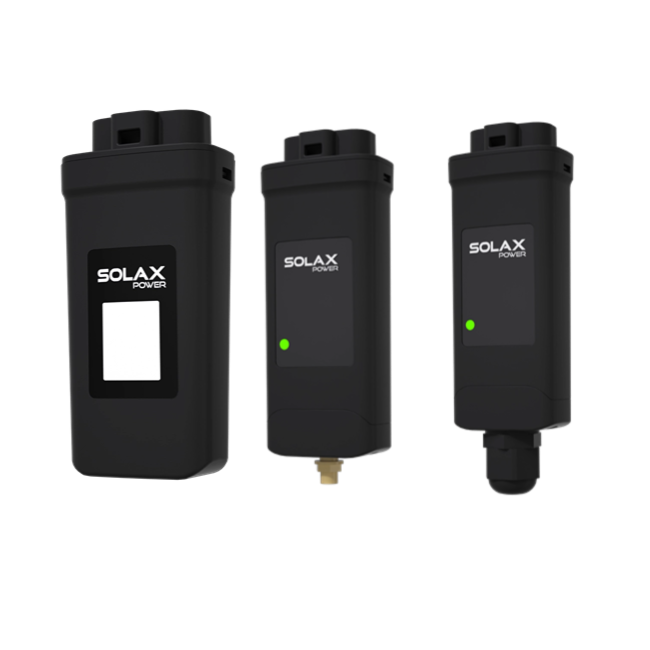

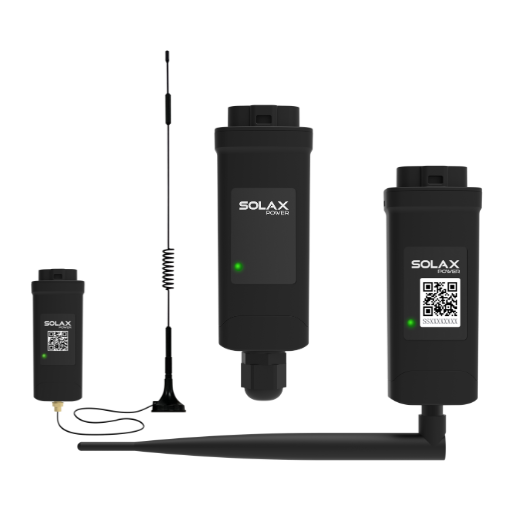

Pocket WiFi V3.0-P / Pocket WiFi+LAN / Pocket WiFi+4GM

تتميز سلسلة Pocket من SolaX— بما في ذلك Pocket WiFi V3.0-P وPocket WiFi+LAN و Pocket WiFi+4GM -—بتصميم أنيق جاهز للتشغيل مع حماية قوية IP65 ضد الماء والغبار. تتكيف هذه الطرازات بسهولة لتقديم اتصال غير منقطع بين نظامك الشمسي والسحابة.

تنزيل البيانات

ميزة المنتج

تقدم أجهزة اتصال SolaX Pocket تحديث بيانات حية بسرعة 10 ثوان، تخزين بيانات دون اتصال واستئنافها. سلسلة SolaX Pocket هي مثالية للتطبيقات الشمسية والطاقية القابلة للتوسع.

اتصل بنا

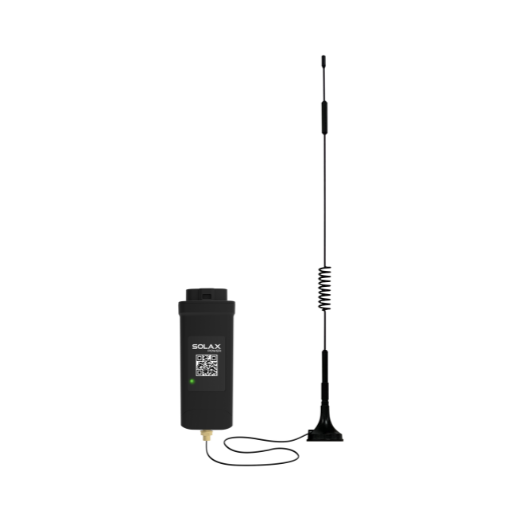

Pocket WiFi+4GM

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*

Pocket WiFi+LAN

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*
OpenADR support*
Supports automatic switching between WiFi and LAN in different scenarios

Pocket WiFi V3.0-P

Quick installation with "Plug & Play" function
IP65 dust prevention and waterproof design
Stable data transmission and good reliability
Offline data storage and resume
Multiple antenna adaptations according to the situation
10-second live data monitoring
Modbus TCP support
IEEE2030.5 support*
OpenADR support*

معلمات المنتج

Pocket WiFi+4GM
Pocket WiFi+LAN
Pocket WiFi V3.0-P

Pocket WiFi+4GM
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 124 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi+LAN
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 80 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
Pocket WiFi V3.0-P
- MECHANICAL DATA

  Dimensions(W × H × D) 112 x 45.7 x 28.5 mm
  Weight 107 ± 10 g
- COMMUNICATION FEATURES

  Wireless module WiFi 2.4 GHz
  Antenna gain 3 dBi
  Data transfer interval 5 mins / 10s optional
- ENVIRONMENTAL & PROTECTION

  Operating temperature range -35°C ~ +60°C
  Degree of protection IP65
