خدمات ESS السكنية

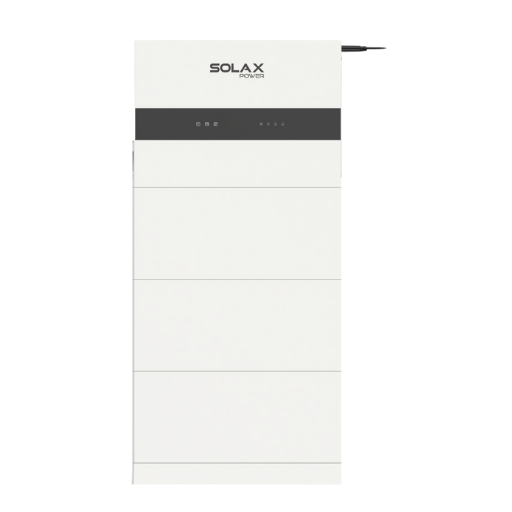

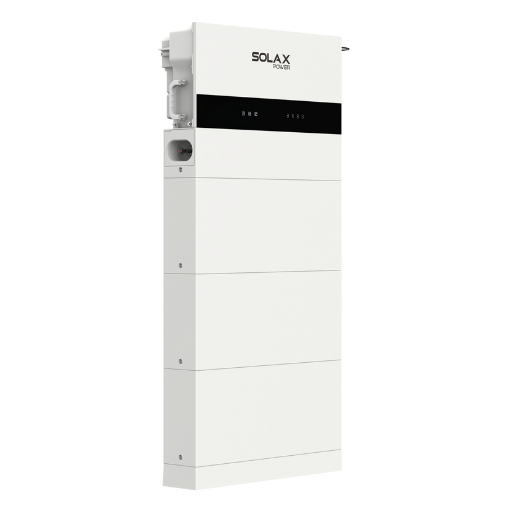

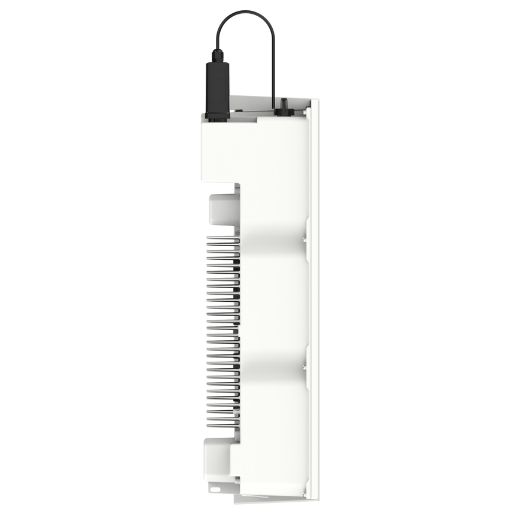

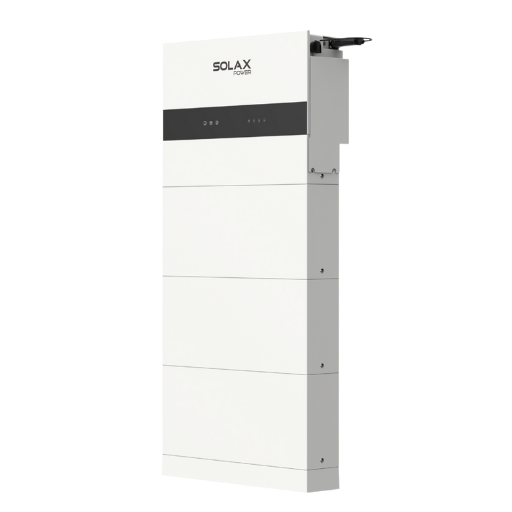

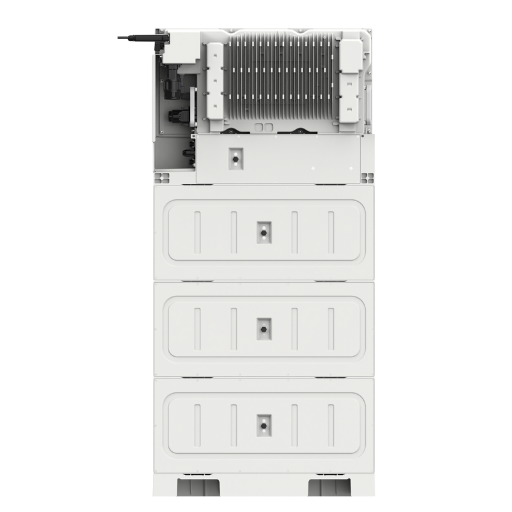

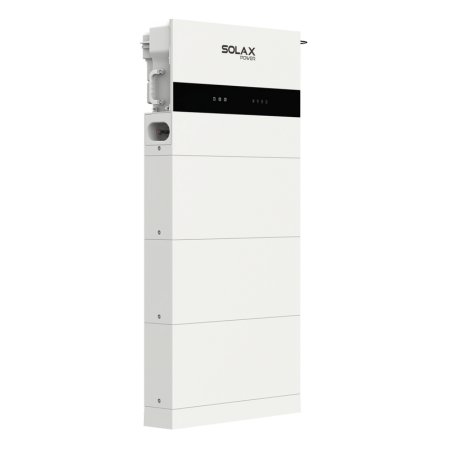

X3-IES-P

4 كيلووات /5 كيلووات / 6 كيلووات/ 8 كيلووات/ 10 كيلووات/ 12 كيلووات /15كيلووات

صمم محول X3-IES-P للمرونة والبساطة، بميزة بناء شامل مضغوط جاهز للتشغيل يبسط التثبيت. يتكيف بسهولة مع التطبيقات المختلفة بدعم مضخات الحرارة وشواحن EV والمشاهد الذكية.

شاهد الفيديو
تنزيل البيانات

ميزة المنتج

يقدم X3-IES-P زيادة حجم مدخل PV بنسبة 200% ويوفر تيارا يصل إلى 20 أمبير لكل MPPT، لتحقيق أقصى حصاد للطاقة الشمسية تحت جميع الظروف. جهد البدء المنخفض وتقنية تتبع MPP العالمية يحسنان استقطاب الطاقة طوال اليوم.

اتصل بنا

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)**
Unique battery heating tech and wide temperature tolerance
Up to 200% EPS output for 10s
UPS-level switchover time<10ms

Smart Management

Al ready, forecasting solar generation and home consumption for smart energy management strategy control*
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)**
Micro-grid support for real-time balance in grid/off-grid
Wireless meter solution
Smart Schedule, Smart Scene, and 7*24h TOU
Global MPP scan for optimal energy harvest

High Performance

Max. 3 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 20A PV input per MPPT
Low startup voltage for higher energy harvest

Flexible Adaptability

All-in-one, plug-and-play design
Support smart scene functions (e.g., heat pump, EV charger)
Versatile installation for varied needs

معلمات المنتج

X3-IES-4K-P
X3-IES-5K-P
X3-IES-6K-P
X3-IES-8K-P
X3-IES-10K-P
X3-IES-12K-P
X3-IES-15K-P

X3-IES-4K-P
- PV INPUT

  Max. recommended PV array power
  8 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  4kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  4 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-5K-P
- PV INPUT

  Max. recommended PV array power
  10 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  5kW (AS4777 4999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  5 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-6K-P
- PV INPUT

  Max. recommended PV array power
  12 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  2 / (1 / 1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  6kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  6 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-8K-P
- PV INPUT

  Max. recommended PV array power
  16 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  10 kW (AS4777 9999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  10 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-10K-P
- PV INPUT

  Max. recommended PV array power
  20 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  10 kW (AS4777 9999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  10 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-12K-P
- PV INPUT

  Max. recommended PV array power
  24 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  12 kW
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  12 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
X3-IES-15K-P
- PV INPUT

  Max. recommended PV array power
  30 kWp
  MPPT voltage range
  110~950 V
  Number of MPP. trackers / strings per MPPT
  3 / (1 / 1 / 1)
  Max. input current per MPPT
  20 A / 20 A / 20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  15 kW (AS14999)
  Rated AC voltage
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  15 kVA
  Peak EPS output power
  2 times of rated power, 10s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x405x209.5 mm
  Cooling concept Nature cooling
  Net Weight
  37 kg
