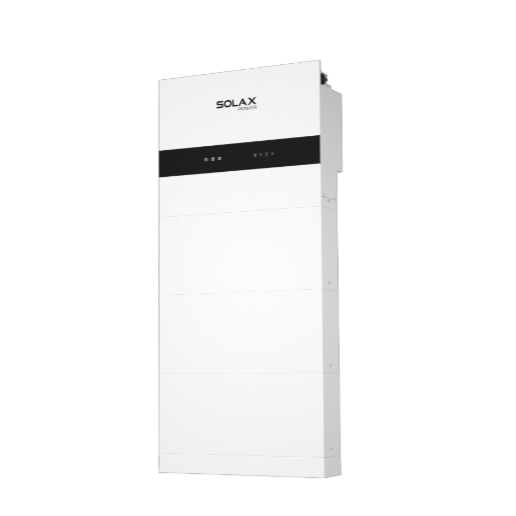

نظام تخزين الطاقة السكني

معلمات المنتج

•

  X3-IES-4K

  • PV INPUT



    Max. recommended PV array power	8 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(1/1)
    Max. input current per MPPT	20 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	4000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	4 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-5K

  • PV INPUT



    Max. recommended PV array power	10 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(1/1)
    Max. input current per MPPT	20 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	5000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	5 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-6K

  • PV INPUT



    Max. recommended PV array power	12 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(1/1)
    Max. input current per MPPT	20 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	6000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	6 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-8K

  • PV INPUT



    Max. recommended PV array power	16 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(2/1)
    Max. input current per MPPT	32 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	8000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	8 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-10K

  • PV INPUT



    Max. recommended PV array power	20 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(2/1)
    Max. input current per MPPT	32 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	10000 W (AS4777 9999)
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	10 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-12K

  • PV INPUT



    Max. recommended PV array power	24 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(2/1)
    Max. input current per MPPT	32 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	12000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	12 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg




•

  X3-IES-15K

  • PV INPUT



    Max. recommended PV array power	30 kWp
    MPPT voltage range	110~950 V
    Number of MPP. trackers / strings per MPPT	2/(2/1)
    Max. input current per MPPT	32 A/20 A




  • AC INPUT & OUTPUT(ON-GRID)



    Rated output power	15000 W
    Rated AC voltage	3/N/PE,220/380V 3/N/PE,230/400V




  • EPS(OFF-GRID) OUTPUT(WITH BATTERY)



    Rated EPS output power	15 KVA
    Peak EPS output power	2 times of rated power, 10s
    Switchover time	<10 ms




  • BATTERY MODEL



    Battery type	Li-ion (LFP)
    Max Charge / Discharge current	50 A
    Ingress protection	IP66




  • GENERAL



    Dimensions (W x H x D)	717x405x209.5 mm
    Net Weight	37 kg
