خدمات ESS السكنية

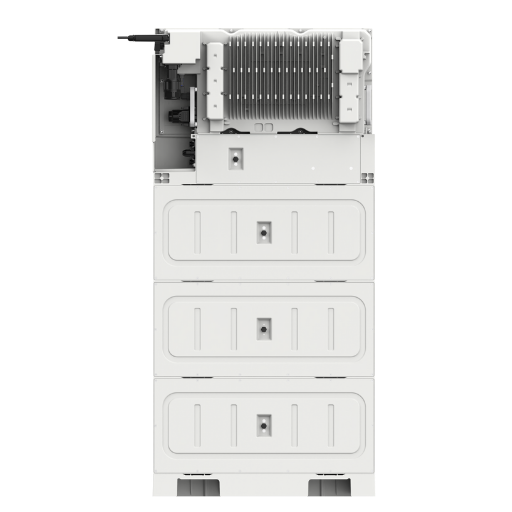

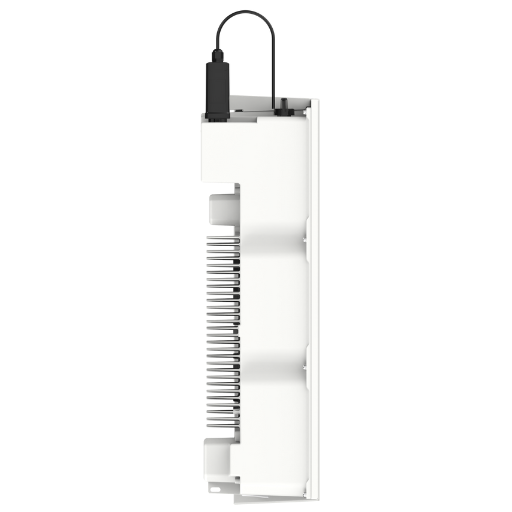

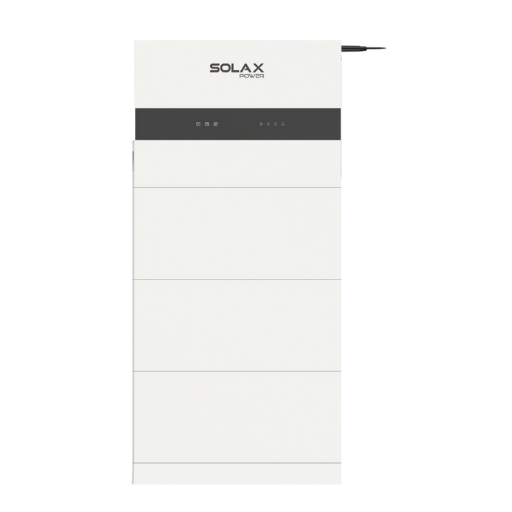

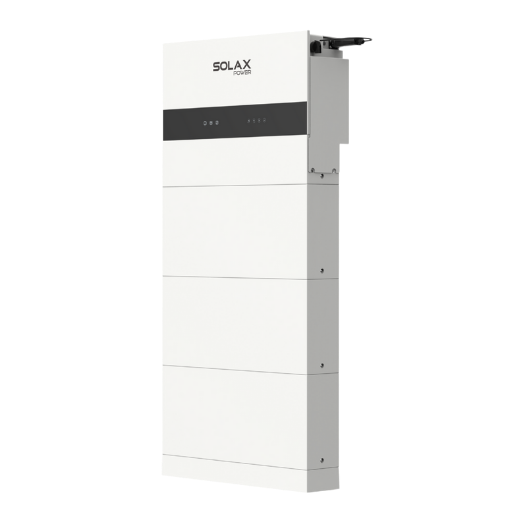

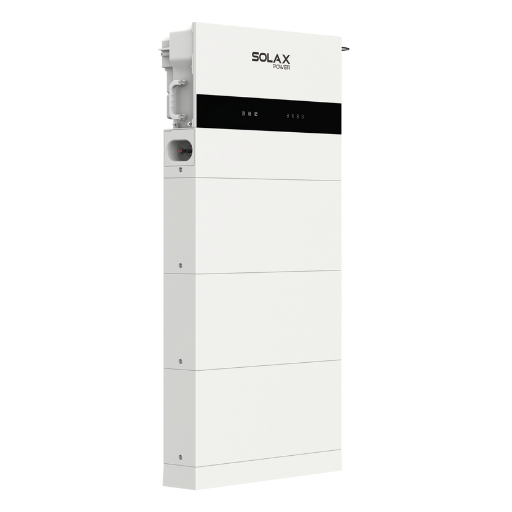

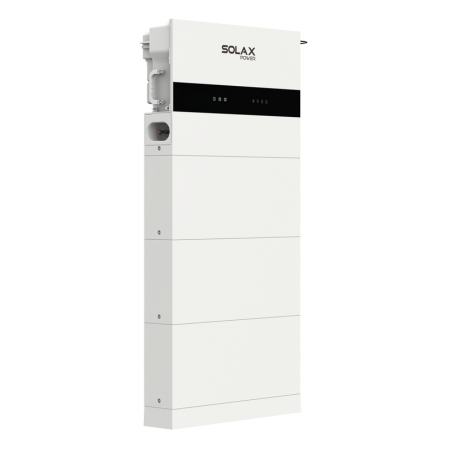

X1-IES

2.5K / 3.7K / 4.6K / 5K / 6K / 8K

تم تصميم X1-IES لمنظومة الطاقة الحديثة، مقدما تصميما شاملا جاهزا للتشغيل يبسط التثبيت ويعزز التوافق. بدعم أحمال ذكية مثل شواحن EV ومضخات الحرارة وتكوينات الشبكات الصغيرة، هو الحل الأمثل للمنشآت السكنية.

شاهد الفيديو
تنزيل البيانات

ميزة المنتج

يدعم X1-IES مدخل PV يصل إلى 200% وخرج EPS لمدة 10 ثوان، مما يمكن من استخدام طاقة فائق خلال أحمال الذروة. جاهزية الذكاء الاصطناعي وقدرات تكامل VPP تجعل نظامك المستقبلي آمنا مع ضمان قابلية توسيع سلسة.

اتصل بنا

Assured Reliability

IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)
UPS-level switchover time<10ms

Smart Management

Al ready, forecasting solar generation and home consumption for
smart energy management strategy control*
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)**
Smart loads management (e.g., heat pump, smart EV charger)
Micro-grid support for real-time grid/off-grid balancing
Wireless meter compatibility
Global MPP scan for optimal energy harvest

Flexible Adaptability

All-in-one, plug-and-play design
Max. 20A DC input current for high power solar panel

High Performance

Max. 50A charge/discharge current
200% oversizing and 200% PV input power
Up to 200% EPS output for 10s
Low start-up voltage for longer operation
Cycle life > 6000 times

معلمات المنتج

X1-IES-2.5K
X1-IES-3K
X1-IES-3.7K
X1-IES-5K
X1-IES-6K
X1-IES-8K

X1-IES-2.5K
- PV INPUT

  Max. recommended PV array power
  5.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  2500 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  2500 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-3K
- PV INPUT

  Max. recommended PV array power
  6.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  3000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  3000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-3.7K
- PV INPUT

  Max. recommended PV array power
  7.4 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  2/(1/1)
  Max. input current per MPPT
  20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  3680 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  3680 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.2 kg
X1-IES-5K
- PV INPUT

  Max. recommended PV array power
  10.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20A/20A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  5000 W
  (4600 for VDE41054999 for AS4777)
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  5000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
X1-IES-6K
- PV INPUT

  Max. recommended PV array power
  12.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20 A/20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  6000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  6000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
X1-IES-8K
- PV INPUT

  Max. recommended PV array power
  16.0 kWp
  MPPT voltage range
  40~560 V
  Number of MPP. trackers / strings per MPPT
  3/(1/1/1)
  Max. input current per MPPT
  20 A/20 A/20 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power
  8000 W
  Rated AC voltage
  1/N/PE,220/230/240V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Rated EPS output power
  8000 VA
  Peak EPS output power
  2 times of rated power, 10 s
  Switchover time
  <10 ms
- BATTERY MODEL

  Battery type
  Li-ion (LFP)
  Max Charge / Discharge current
  50 A
  Ingress protection
  IP66
- GENERAL

  Dimensions (W x H x D)
  717x350x210 mm
  Net Weight
  26.4 kg
