بطارية

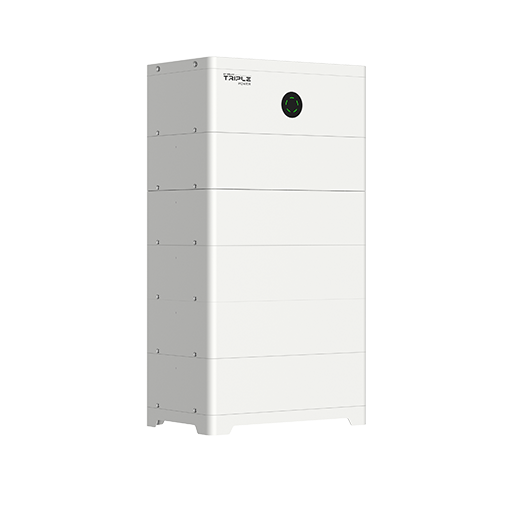

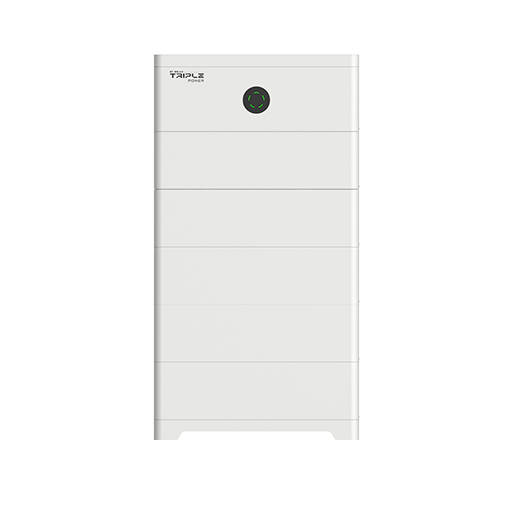

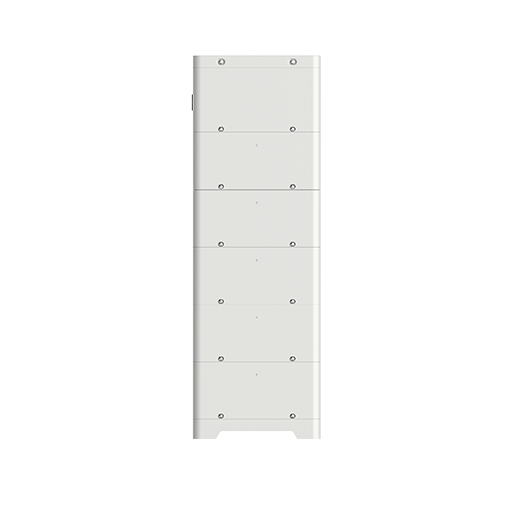

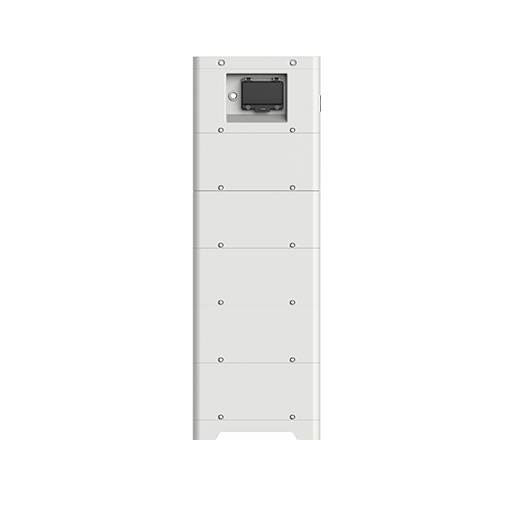

TSYS-HS51

  • 10.2 kWh-66.5 kWh

تقدم بطارية TSYS-HS51 نطاق سعة واسع من 10.2 كيلوواط/ساعة إلى 66.3 كيلوواط/ساعة، مما يجعلها مناسبة لمختلف الاحتياجات الطاقية. يتيح توافقها مع جهاز TCBox-70 التوسع حتى 3 أبراج بطارية لزيادة السعة.

ميزة المنتج

تدعم بطارية TSYS-HS51 تيار شحن/تفريغ يصل حتى 70 أمبير ، مقدمة نقل طاقة سريعا. بحماية IP66، تضمن تشغيلا موثوقا في بيئات متنوعة. يتميز النظام أيضا بكابل اختياري ثنائي الوظيفة للوصلات المتوازية، مما يساعد على إطالة عمره وتحسين الأداء.

اتصل بنا

Assured Reliability

  • IP66 protection degree

  • LiFePO4 battery cell & high-performance processors

  • Aerosol fire suppression for precise protection


Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating tech and wide temperature  tolerance

  • Optional parallel connection using a two-in-one cable  for easy capacity expansion and extend battery lifespan

  • Maximum 10% expansion of effective power over the entire  life cycle to increase cycle life (optimizer version)

  • 3-hour rapid equalization (optimizer version)


High Performance

  • 10.2-66.5 kWh wide capacity range

  • Max. 70A charging / discharging current

  • Cycle life > 6000 times

Flexible Adaptability

  • Compatible with TCBox-70, up to 3 towers of batteries

  • Compact and stackable for easy installation

  • Supporting direct battery expansion

  • Supporting mixed use of new and old batteries, supports  rapid capacity expansion, plug and play, no energy loss (optimizer version)


معلمات المنتج

  • T-HS10.2
  • T-HS15.3
  • T-HS20.4
  • T-HS25.6
  • T-HS30.7
  • T-HS35.8
  • T-HS40.9
  • T-HS46.0
  • T-HS51.2
  • T-HS56.3
  • T-HS61.4
  • T-HS66.5
  • T-HS10.2
    • SYSTEM SPECIFICATION
      Number of modules2
      Rated energy10.2 kWh
      Rated voltage102.4 V
      Rated power

      6.1 kW

      Dimension (W x H x D)600 × 621 × 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Net weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS15.3
    • SYSTEM SPECIFICATION
      Number of modules3
      Rated energy15.3 kWh
      Rated voltage153.6 V
      Rated power

      9.2 kW

      Dimension (W x H x D)600x789 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS20.4
    • SYSTEM SPECIFICATION
      Number of modules4
      Rated energy20.4 kWh
      Rated voltage204.8 V
      Rated power

      12.3 kW

      Dimension (W x H x D)600x957x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)46 kg / 47.1 kg (with optimizer)
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS25.6
    • SYSTEM SPECIFICATION
      Number of modules5
      Rated energy25.6 kWh
      Rated voltage256.0 V
      Rated power

      15.4 kW

      Dimension (W x H x D)600 x 1125 x 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS30.7
    • SYSTEM SPECIFICATION
      Number of modules6
      Rated energy30.7 kWh
      Rated voltage307.2 V
      Rated power

      18.4 kW

      Dimension (W x H x D)600x1293 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS35.8
    • SYSTEM SPECIFICATION
      Number of modules7
      Rated energy35.8 kWh
      Rated voltage358.4 V
      Rated power

      21.5 kW

      Dimension (W x H x D)600 x1461 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS40.9
    • SYSTEM SPECIFICATION
      Number of modules8
      Rated energy40.9 kWh
      Rated voltage409.6 V
      Rated power

      24.6 kW

      Dimension (W x H x D)600x1629x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS46.0
    • SYSTEM SPECIFICATION
      Number of modules9
      Rated energy46.0 kWh
      Rated voltage460.8 V
      Rated power

      27.6 kW

      Dimension (W x H x D)

      600x957x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS51.2
    • SYSTEM SPECIFICATION
      Number of modules10
      Rated energy51.2 kWh
      Rated voltage512.0 V
      Rated power

      30.7 kW

      Dimension (W x H x D)

      600x1125x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS56.3
    • SYSTEM SPECIFICATION
      Number of modules11
      Rated energy56.3 kWh
      Rated voltage563.2 V
      Rated power

      33.8 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS61.4
    • SYSTEM SPECIFICATION
      Number of modules12
      Rated energy61.4 kWh
      Rated voltage614.4 V
      Rated power

      36.9 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS66.5
    • SYSTEM SPECIFICATION
      Number of modules13
      Rated energy66.5 kWh
      Rated voltage665.6 V
      Rated power

      39.9 kW

      Dimension (W x H x D)

      600x1461x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66
