Residential Batteries

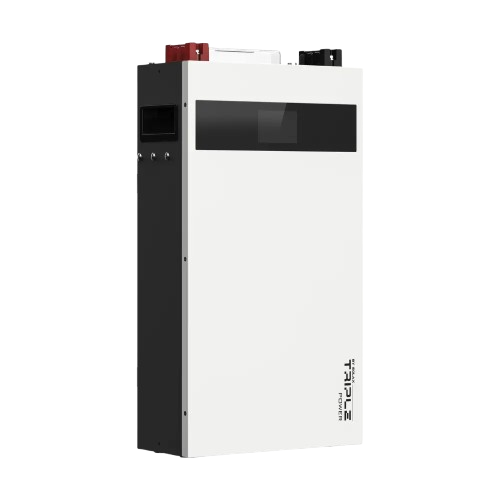

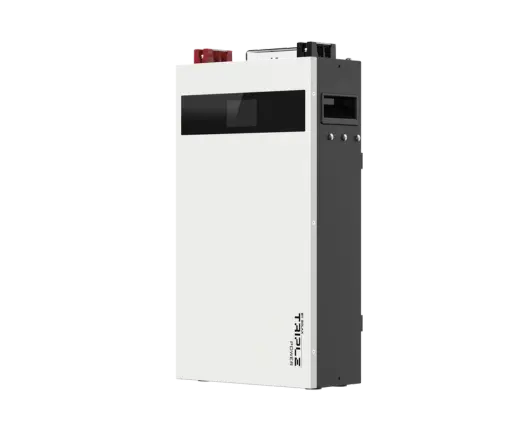

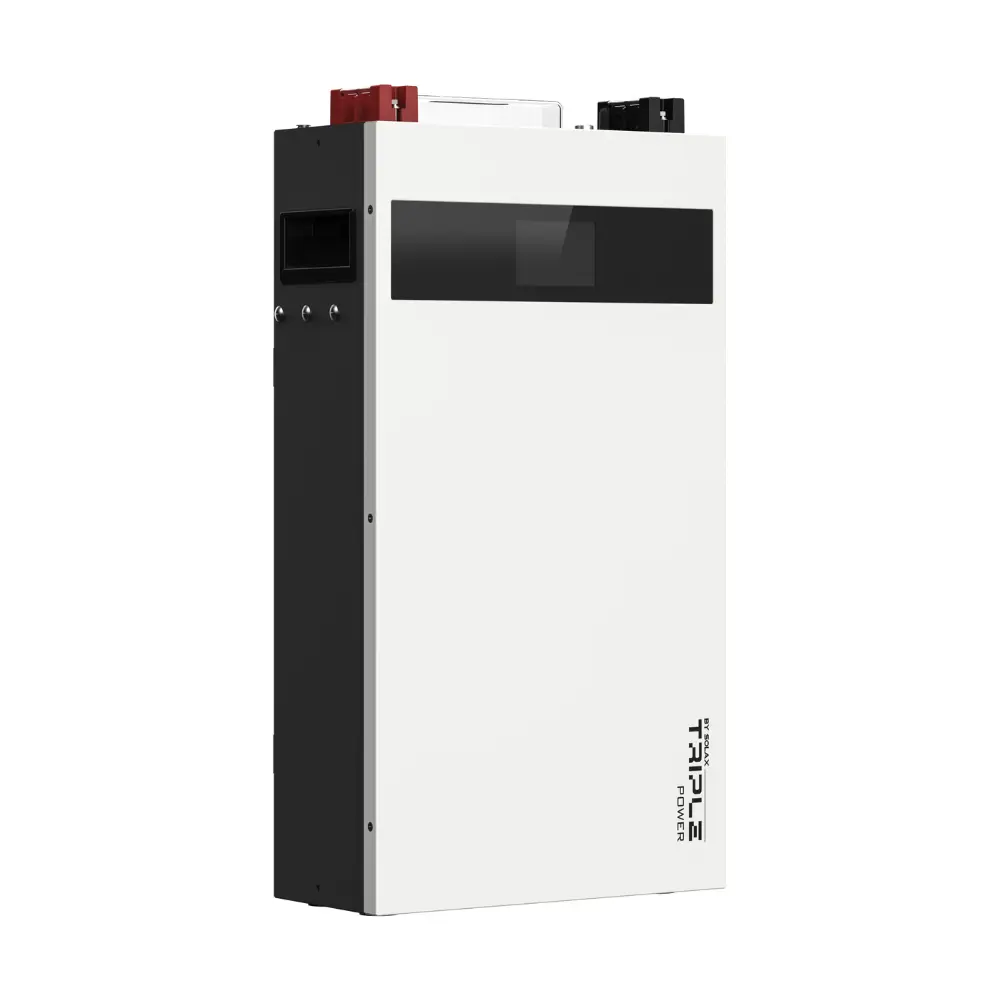

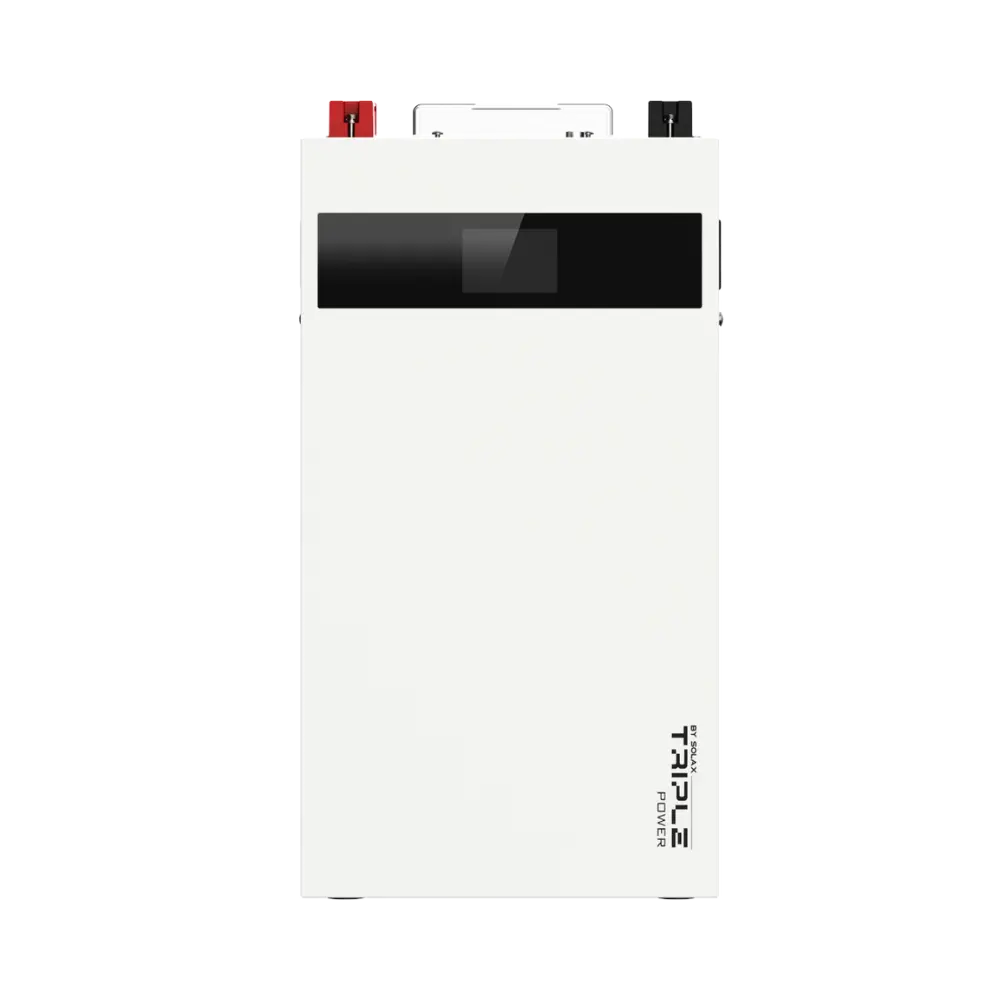

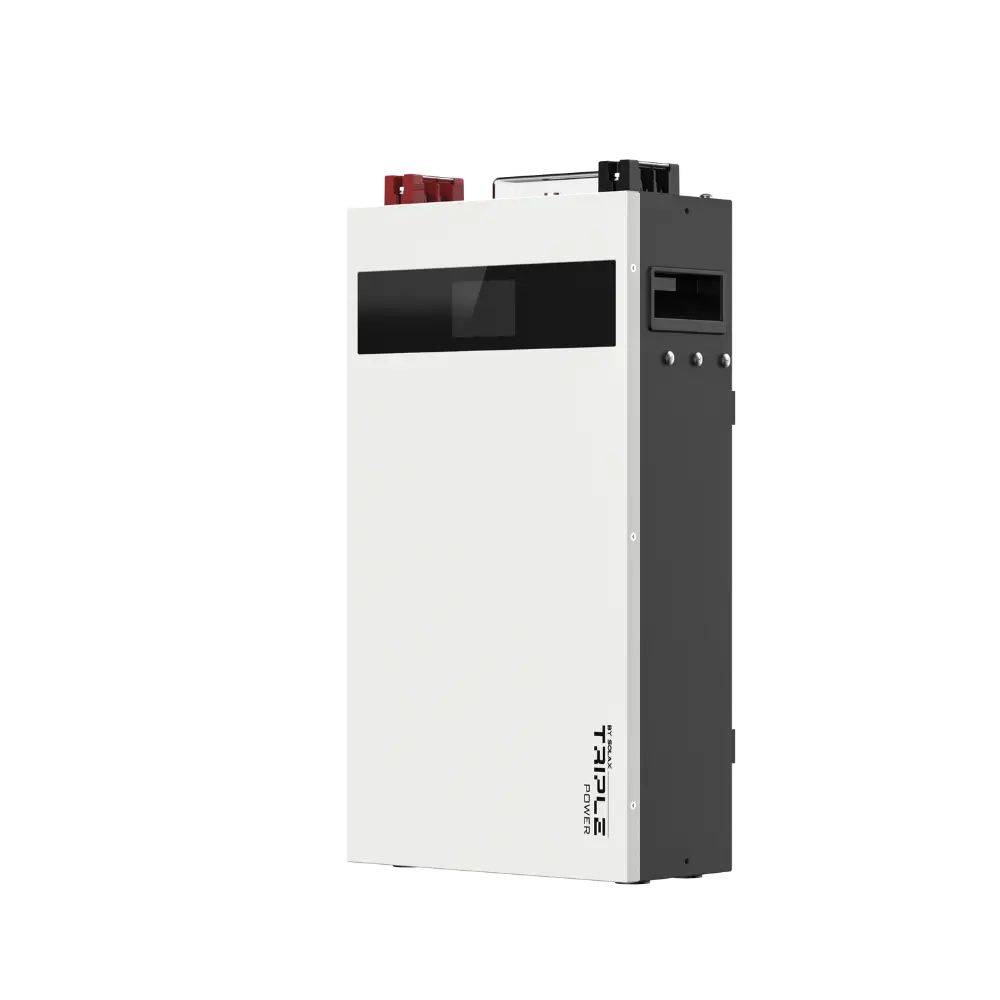

TSYS-LD51
-
5.1 kWh
The TSYS-LD51 stands out with its innovative smart management system, featuring an easy-to-use LCD touchscreen for intuitive control. Additionally, the system supports remote diagnostics and updates, making maintenance effortless. With an IP40-rated protection, it ensures safe and dependable operation across different environments.
Product Advantage
The TSYS-LD51 offers various mounting options, including floor, wall, and stack installations, and supports scalability of up to 16 units in parallel. Its CTP (Cell-to-Pack) design optimizes space and energy density, delivering exceptional efficiency for reliable energy management.
Flexible Adaptability
Supports floor, wall, or stack mounting
Expandable to 16 units in parallel
CTP(Cell-to-Pack) design maximizes space and energy density for superior performance
High Performance
135A maximum charging current ensures superior power and peak performance
Cycle life > 6000 times for long-lasting use
Assured Reliability
Premium LiFeP04 cells and high-efficiency processors
IP40-rated for reliable and safe operation
Smart Management
User-friendly LCD touchscreen for intuitive and easy interaction
Remote fault diagnostics and updates
Product Parameters
-
TB-LD51-
BATTERY MODULE
Battery type LFP Rated capacity 100 Ah Operating voltage range 42.4~57.6 V Nominal voltage 51.2 V Max current Charge: 100 A, Discharge: 135 A -
GENERAL
Weight 41.5 ± 1 kg Dimensions (W × H × D) 326 x626 x164 mm Enclosure protection IP40
-
